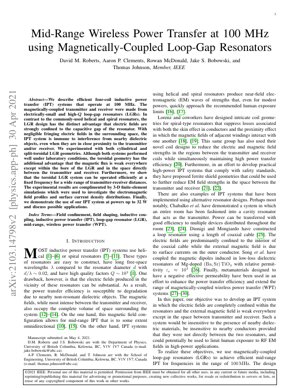

Mid-Range Wireless Power Transfer at 100 MHz using Magnetically-Coupled Loop-Gap Resonators

1. Introduction & Overview

This paper presents a novel approach to mid-range inductive power transfer (IPT) operating at 100 MHz. The core innovation lies in replacing conventional helical or spiral resonators with high-Q loop-gap resonators (LGRs). The primary motivation is to overcome a critical limitation of traditional IPT systems: their susceptibility to efficiency degradation from nearby dielectric objects due to fringing electric fields. The LGR design confines electric fields to its capacitive gap, making the system robust against environmental interference. The work explores both cylindrical and split-toroidal LGR geometries, with the latter offering superior magnetic field confinement. The system demonstrates efficient power transfer up to 32 W and maintains performance over a range of distances at a fixed frequency, supported by 3D finite-element simulations.

2. Core Technology: Loop-Gap Resonators

Loop-Gap Resonators are electrically-small, resonant structures consisting of a conductive loop interrupted by a narrow capacitive gap. Their high quality factor (Q) is crucial for efficient resonant coupling.

3. System Design & Methodology

4. Technical Details & Mathematical Modeling

The system can be modeled using coupled-mode theory or circuit theory. The power transfer efficiency ($\eta$) for a resonant system is highly dependent on the coupling coefficient ($k$) and the quality factors ($Q_T$, $Q_R$) of the transmitter and receiver resonators. $$\eta \propto \frac{k^2 Q_T Q_R}{(1 + \sqrt{1 + k^2 Q_T Q_R})^2}$$ The LGR's high Q directly boosts this efficiency. The coupling coefficient $k$ is related to the mutual inductance $M$ and the self-inductances $L_T$, $L_R$: $$k = \frac{M}{\sqrt{L_T L_R}}$$ The 3D finite-element simulations (e.g., using ANSYS HFSS or COMSOL) were crucial for visualizing the surface current density $\vec{J}_s$ and the $\vec{E}$ and $\vec{B}$ field profiles, confirming the confinement hypothesis.

5. Experimental Results & Performance

6. Analysis Framework & Case Example

Case Example: Evaluating LGR for Medical Implant Charging
Consider the challenge of wirelessly charging a deep-brain stimulator. Safety is paramount—stray fields must be minimized. Using the framework from this paper:

1. Problem Definition: Need efficient power transfer through tissue (a lossy dielectric) without heating or interfering with other devices.
2. Technology Selection: An LGR-based system is chosen for its confined E-field, reducing unwanted dielectric heating in tissue compared to a spiral coil.
3. Geometry Optimization: A toroidal LGR would be designed (via FEM simulation) to further confine the B-field, focusing energy on the implant and minimizing exposure to surrounding areas.
4. Validation: Build prototype, measure efficiency and SAR (Specific Absorption Rate) in tissue-equivalent phantom, compare against regulatory limits (e.g., IEEE C95.1).

7. Application Outlook & Future Directions

Near-term Applications:

• Consumer Electronics: Clutter-free charging surfaces in homes/offices that are immune to objects like keys or phones placed nearby.
• Industrial IoT: Powering sensors in metallic or wet environments where traditional WPT fails due to interference.
• Biomedical Devices: Safe charging of implantable medical devices and wireless power for surgical tools.

• Dynamic Tuning: Integrating adaptive circuits to maintain peak efficiency with movement, building on the fixed-frequency advantage.
• Multi-Receiver Systems: Extending the LGR concept to efficiently power multiple devices simultaneously, a challenge noted in works like those from the MIT WiTricity team.
• Integration with Metamaterials: Using metamaterial slabs to enhance and direct the already-confined magnetic fields for ultra-long-range WPT, as explored in studies from Stanford and ITMO University.
• Higher Power & Frequency: Scaling the design to kW-level for electric vehicle charging or moving to higher MHz/GHz frequencies for miniaturized devices.

8. References

1. Sample, A. P., Meyer, D. A., & Smith, J. R. (2011). Analysis, experimental results, and range adaptation of magnetically coupled resonators for wireless power transfer. IEEE Transactions on Industrial Electronics, 58(2), 544-554.
2. Kurs, A., Karalis, A., Moffatt, R., Joannopoulos, J. D., Fisher, P., & Soljačić, M. (2007). Wireless power transfer via strongly coupled magnetic resonances. Science, 317(5834), 83-86. (Seminal MIT WiTricity paper)
3. Lorenz, C. H. P., et al. (2020). Design of spiral resonators for minimized proximity effect and skin effect losses. IEEE Transactions on Power Electronics.
4. Chabalko, M. J., Sample, A. P. (2015). Three-dimensional charging via multimode resonant cavity enabled wireless power transfer. IEEE Transactions on Power Electronics.
5. IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields (0 Hz to 300 GHz), IEEE Std C95.1-2019.
6. ANSYS HFSS. (2023). 3D High Frequency Electromagnetic Field Simulation Software. [Software]. Available from ansys.com

9. Expert Analysis & Critical Review

Core Insight: Roberts et al. aren't just tweaking coil geometry; they're executing a strategic pivot in WPT design philosophy—from maximizing omnidirectional coupling to precision field engineering. Their work on Loop-Gap Resonators at 100 MHz directly attacks the Achilles' heel of practical mid-range WPT: environmental interference. While the industry has been obsessed with pushing Q-factors and coupling distances (see the trajectory from MIT's seminal 2007 paper), this team correctly identifies that uncontrolled field leakage is what stalls real-world adoption, particularly concerning human safety standards (IEEE C95.1) and integration into cluttered environments.

Logical Flow: The paper's logic is robust. It starts with a clear problem statement (dielectric interference from fringing E-fields), proposes a physically sound solution (LGRs for E-field confinement), validates it with not one but two optimized geometries (cylindrical and toroidal), and then proves its practical merit with hard data (32 W transfer, fixed-frequency operation). The use of 3D FEM simulation is not an afterthought but a core part of the design-validation loop, mirroring best practices in high-frequency engineering as seen in tools like ANSYS HFSS. This methodology is more rigorous than many proof-of-concept WPT papers.

Strengths & Flaws:
Strengths: The field confinement is demonstrably effective and addresses a non-trivial problem. The split-toroidal design is clever, showing an understanding that magnetic field shaping is the next frontier after electric field control. The fixed-frequency operation is a significant practical advantage, reducing system complexity and cost.
Flaws & Gaps: The paper is notably silent on the system's efficiency curve across distance—we get "wide range" but no hard numbers or comparison to a baseline helical system. How does the efficiency at, say, 30 cm compare? This omission makes a full cost-benefit analysis difficult. Furthermore, while immune to dielectrics, the impact of nearby conductive metals (a huge real-world concern) is not explored. The 100 MHz frequency is interesting but sits in a crowded spectrum band; interference with communications or regulatory hurdles are not discussed. Finally, the leap from a single, well-aligned receiver to a multi-device scenario—a key requirement for market viability, as pursued by groups like WiTricity—remains unaddressed.

Actionable Insights:

1. For Researchers: This work sets a new benchmark. The next step is to hybridize this approach. Integrate the LGR's field confinement with dynamic tuning algorithms (like those used in modern EV charging) and ferrite shielding strategies (as seen in Lorenz's work) to create a truly robust, adaptive, and safe WPT system. The toroidal LGR is ripe for exploration in biomedical implants.
2. For Product Developers: Prioritize the toroidal LGR geometry for any application where safety or foreign object interference is a concern (medical, kitchen, industrial). The fixed-frequency operation is a major win for simplifying power electronics—factor this into your Bill of Materials and reliability calculations.
3. For Investors: This represents a de-risking of mid-range WPT technology. A startup leveraging this IP isn't just selling "wireless power"; it's selling "reliable and safe wireless power." Focus due diligence on their ability to scale manufacturing of precision LGRs and tackle the multi-receiver challenge. The value is in solving the integration problem, not just the physics problem.
