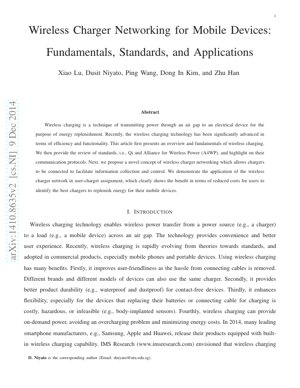

Wireless Charger Networking: Fundamentals, Standards, and Applications

1. Introduction

Wireless charging technology enables the transfer of electrical energy from a power source (charger) to an electrical load (e.g., a mobile device) across an air gap without physical connectors. This technology offers significant benefits including improved user convenience, enhanced device durability (e.g., waterproofing), flexibility for hard-to-reach devices (e.g., implants), and on-demand power delivery to prevent overcharging. The market for wireless charging is projected to grow substantially, with estimates reaching $4.5 billion by 2016 and potentially tripling by 2020. This article provides a comprehensive overview of the fundamentals, reviews leading standards (Qi and A4WP), and introduces the novel concept of Wireless Charger Networking (WCN).

2. Overview of Wireless Charging Technique

The concept of wireless power transfer dates back to Nikola Tesla's experiments in the late 19th and early 20th centuries. Modern development gained momentum with the invention of magnetrons and rectennas, enabling microwave-based power transfer. Recent progress has been driven by industry consortia establishing international standards.

3. Wireless Charging Standards

Standardization is crucial for interoperability and widespread adoption. Two leading standards are Qi and A4WP.

4. Wireless Charger Networking

The paper's key contribution is proposing the concept of Wireless Charger Networking (WCN), moving beyond point-to-point charging to an interconnected system.

5. Technical Details and Mathematical Models

The efficiency of inductive power transfer is governed by the coupling coefficient ($k$) and the quality factors ($Q_T$, $Q_R$) of the transmitter and receiver coils. The power transfer efficiency ($\eta$) can be approximated for strongly coupled systems as: $$\eta \approx \frac{k^2 Q_T Q_R}{(1 + \sqrt{1 + k^2 Q_T Q_R})^2}$$ For the user-charger assignment problem, a cost minimization framework is proposed. Let $C_{ij}$ be the total cost if user $i$ is assigned to charger $j$. This cost comprises: $$C_{ij} = \alpha \cdot E_{ij} + \beta \cdot T_{ij}$$ where $E_{ij}$ is the energy cost for the transfer, $T_{ij}$ is the user's search/discovery cost (a function of distance and network information availability), and $\alpha$, $\beta$ are weighting factors. The WCN's goal is to solve the assignment matrix $X_{ij}$ (where $X_{ij}=1$ if user $i$ is assigned to $j$) to minimize $\sum_{i,j} C_{ij} X_{ij}$ subject to constraints like one charger per user and charger capacity limits.

6. Experimental Results and Performance

The paper presents a simulation-based evaluation of the user-charger assignment algorithm within a WCN. The experimental setup models a floor of an office building with multiple wireless chargers deployed at fixed locations (e.g., in tables, lounge areas). Mobile users arrive randomly with a certain battery depletion level.

Key Performance Metrics:

• Total System Cost: The sum of energy transfer costs and user search costs.
• User Satisfaction: Measured as the percentage of users who successfully find a charger before their device shuts down.
• Charger Utilization: The balance of load across all chargers in the network.

7. Analysis Framework: User-Charger Assignment Case

Scenario: A coffee shop has 4 wireless charging spots (Ch1-Ch4). At a given time, 3 users (U1-U3) enter seeking charge. U1 is at the entrance, U2 is near the window, U3 is at the counter. Ch1 & Ch2 are free, Ch3 is busy, Ch4 is faulty.

Non-Networked (Baseline): Each user visually scans. U1 might walk to Ch4 first (faulty), incurring cost. U2 and U3 might both head to Ch1, causing contention. Total search cost is high.

WCN-Based Solution:

1. Information Aggregation: WCN knows states: {Ch1: free, loc=A}, {Ch2: free, loc=B}, {Ch3: busy}, {Ch4: faulty}.
2. Cost Calculation: For each user, the network calculates $C_{ij}$ based on distance (proxy for $T_{ij}$) and charger health.
3. Optimal Assignment: The controller solves the assignment problem. A likely optimal assignment: U1->Ch2 (closest viable), U2->Ch1, U3->(wait for Ch3 or Ch1). This minimizes total walking/search distance.
4. User Guidance: The assignment is pushed to users' devices via an app ("Proceed to Table B for charging").

8. Future Applications and Research Directions

• Internet of Things (IoT) and Sensor Networks: Autonomous wireless charging of distributed IoT sensors (e.g., in smart agriculture, industrial monitoring) using mobile charger drones or fixed WCNs.
• Electric Vehicles (EVs): Dynamic wireless charging lanes for EVs and networked charging pads in parking lots for automated billing and grid load management.
• Smart Cities and Public Infrastructure: Integration of wireless charging spots into street furniture (benches, bus stops), enabled by a city-wide WCN for public use and data analytics.
• Research Challenges:
  • Cross-Standard Interoperability: Developing protocols for chargers that support multiple standards (Qi, AirFuel) to communicate within a single network.
  • Security and Privacy: Protecting communication within the WCN from eavesdropping, spoofing, and ensuring user data privacy.
  • Integration with 5G/6G and Edge Computing: Leveraging ultra-low latency and edge intelligence for real-time, context-aware charger network management.
  • Energy Harvesting Integration: Combining WCNs with ambient energy harvesting (solar, RF) to create self-sustaining charging points.

9. References

1. Lu, X., Niyato, D., Wang, P., Kim, D. I., & Han, Z. (2014). Wireless Charger Networking for Mobile Devices: Fundamentals, Standards, and Applications. arXiv preprint arXiv:1410.8635.
2. Wireless Power Consortium. (2023). The Qi Wireless Power Transfer System. Retrieved from https://www.wirelesspowerconsortium.com
3. AirFuel Alliance. (2023). Resonant and RF Wireless Power. Retrieved from https://www.airfuel.org
4. Brown, W. C. (1984). The history of power transmission by radio waves. IEEE Transactions on Microwave Theory and Techniques, 32(9), 1230-1242.
5. Sample, A. P., Meyer, D. A., & Smith, J. R. (2010). Analysis, experimental results, and range adaptation of magnetically coupled resonators for wireless power transfer. IEEE Transactions on Industrial Electronics, 58(2), 544-554.
6. Zhu, J., Banerjee, S., & Chowdhury, K. (2019). Wireless Charging and Networking for Electric Vehicles: A Review. IEEE Communications Surveys & Tutorials, 21(2), 1395-1412.

10. Original Analysis & Expert Insight

Core Insight: Lu et al.'s 2014 paper is prescient, correctly identifying that the true value of wireless charging lies not in the isolated act of power transfer, but in the network intelligence that can be built around it. While the industry was (and often still is) fixated on improving coupling efficiency by a few percentage points, this work pivots to a systems-level view, treating chargers as data nodes. This aligns with the broader trend in IoT and cyber-physical systems, where the value shifts from hardware to the data and control layer, as seen in paradigms like Software-Defined Networking (SDN).

Logical Flow & Strengths: The paper's structure is logically sound: establish the foundation (techniques, standards), identify a gap (lack of inter-charger communication), and propose a novel solution (WCN) with a concrete application. Its major strength is framing a practical, economically-driven problem—user search cost—and demonstrating a quantifiable benefit (25-40% cost reduction). This moves the discussion from technical feasibility to business viability. The choice of the assignment problem is excellent; it's a relatable, tangible use case that immediately justifies the need for a network.

Flaws & Critical Gaps: The paper, as an early vision piece, necessarily glosses over monumental implementation hurdles. First, the business model and incentive alignment are absent. Who builds, owns, and operates the WCN? A coffee shop, a mall, a telecom operator? How are costs and revenues shared between charger manufacturers, venue owners, and service providers? Second, security is treated as an afterthought. A network of power outlets is a high-value target. Spoofing charger status could lead to denial-of-service or, worse, spoofing control signals could cause electrical faults. The paper's model assumes a benign environment, which is unrealistic. Third, the "search cost" metric, while clever, is highly subjective and context-dependent. Modeling it as a simple function of distance ignores user preferences (privacy, noise), which could be as important as proximity.

Actionable Insights & Future Trajectory: For industry players, the actionable insight is to start viewing wireless charging infrastructure as a service delivery platform, not just a utility. The future battleground won't be whose charger is 2% more efficient, but whose network provides a seamless, intelligent user experience and valuable venue analytics. The research community must now address the paper's gaps: 1) Develop lightweight, secure authentication and communication protocols for WCNs, perhaps leveraging blockchain for decentralized trust as explored in some IoT security research. 2) Create standardized APIs and data models for charger status and control, similar to how Wi-Fi has 802.11 standards. The work of consortia like the Open Charge Alliance for EV charging points provides a relevant parallel. 3) Integrate WCNs with larger energy management systems. Future chargers should be grid-responsive assets, participating in demand response programs. Research should explore how a WCN can aggregate distributed charging loads to provide grid services, a concept gaining traction in the EV domain. In conclusion, this paper planted a crucial seed. The next decade's challenge is to build the secure, scalable, and economically sustainable ecosystem around that seed to make Wireless Charger Networking a ubiquitous reality.
